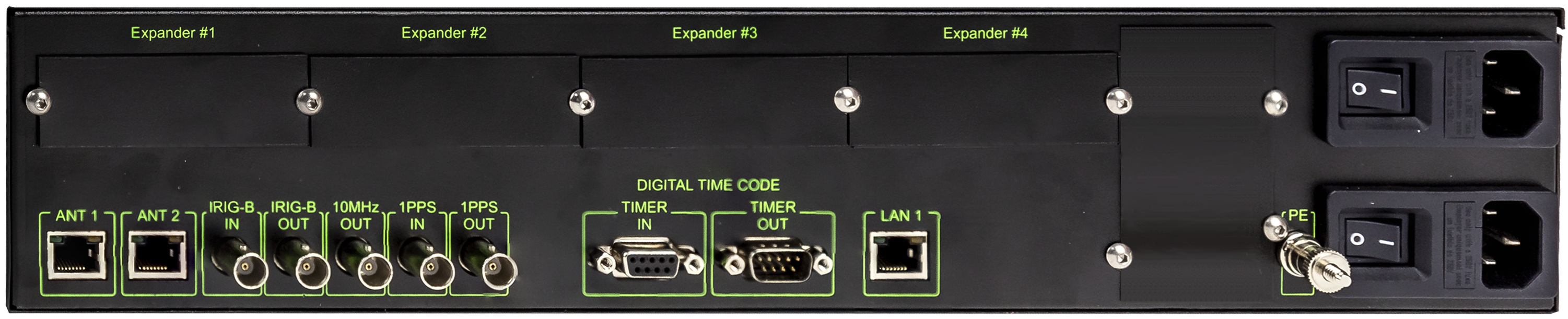

DATACOM-1 (std.) LAN: 2×100/10Mbps
DATACOM-2 LAN: 10GbE + 100Mbps

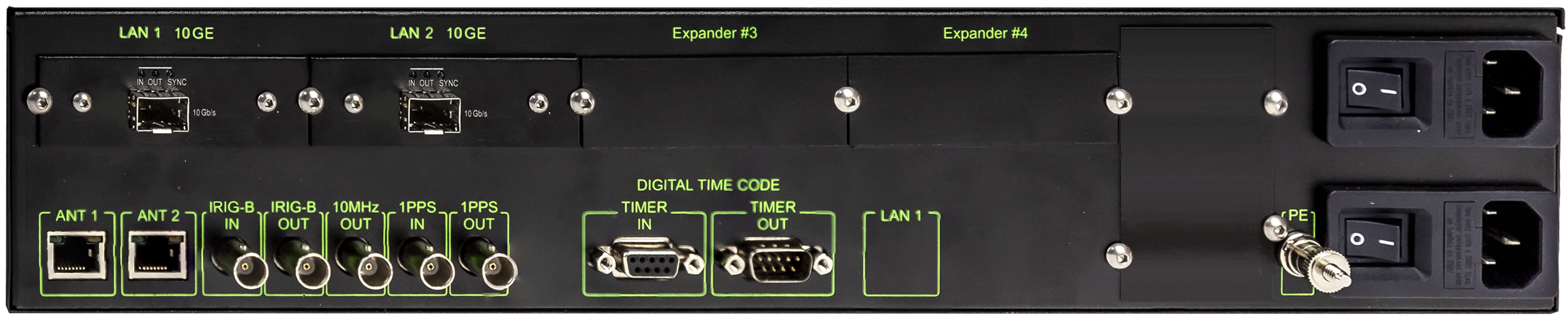

DATACOM-3 LAN: 2x10GbE

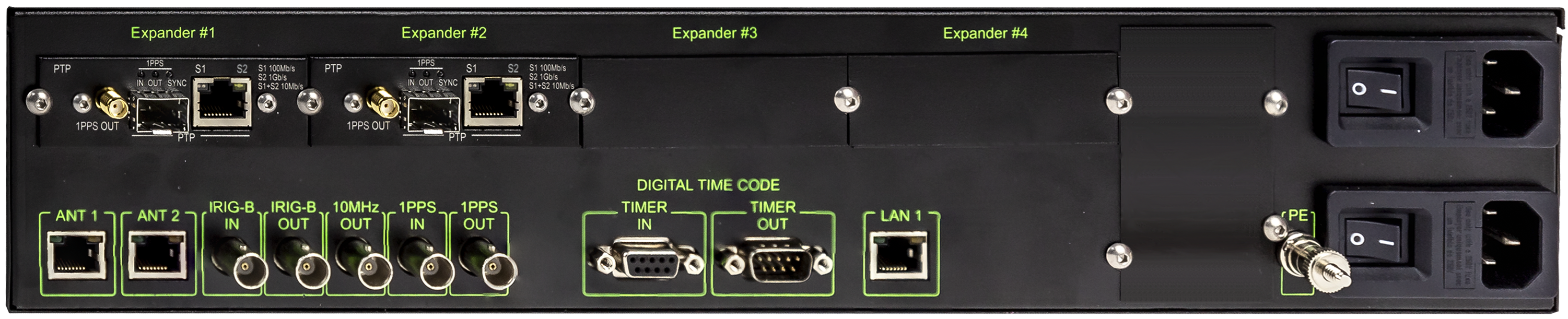

DATACOM-4 LAN: 2x1GbE + 2x100Mbps
DATACOM-5 LAN: 4x1GbE + 2x100Mbps
DATACOM-6 LAN: 6x1GbE + 2x100Mbps
DATACOM-7 LAN: 8x1GbE + 2x100Mbps

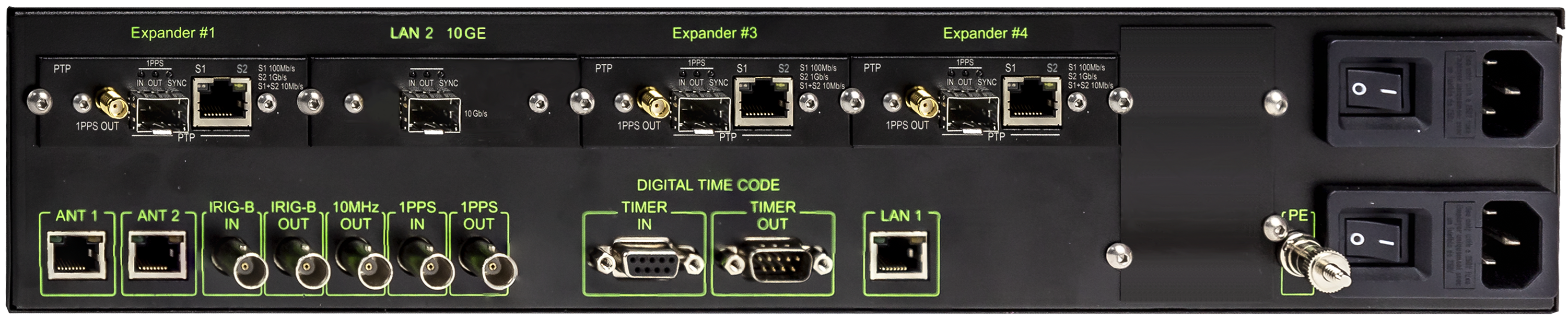

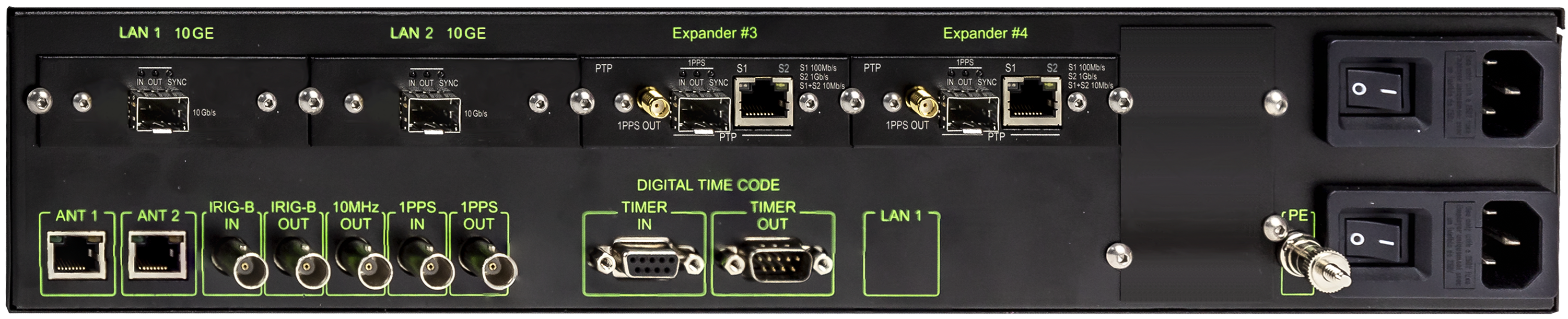

DATACOM-8 LAN: 2x10GbE + 4x1GbE
DATACOM-9 1x10GbE + 6x1GbE + 100Mbps
TELECOM-1 (std.) LAN: 2×100/10Mbps
TELECOM-2 LAN: 10GbE + 100Mbps
TELECOM-3 LAN: 2x10GbE
TELECOM-4 LAN: 2x1GbE + 2x100Mbps
TELECOM-5 LAN: 4x1GbE + 2x100Mbps
TELECOM-6 LAN: 6x1GbE + 2x100Mbps
TELECOM-7 LAN: 8x1GbE + 2x100Mbps

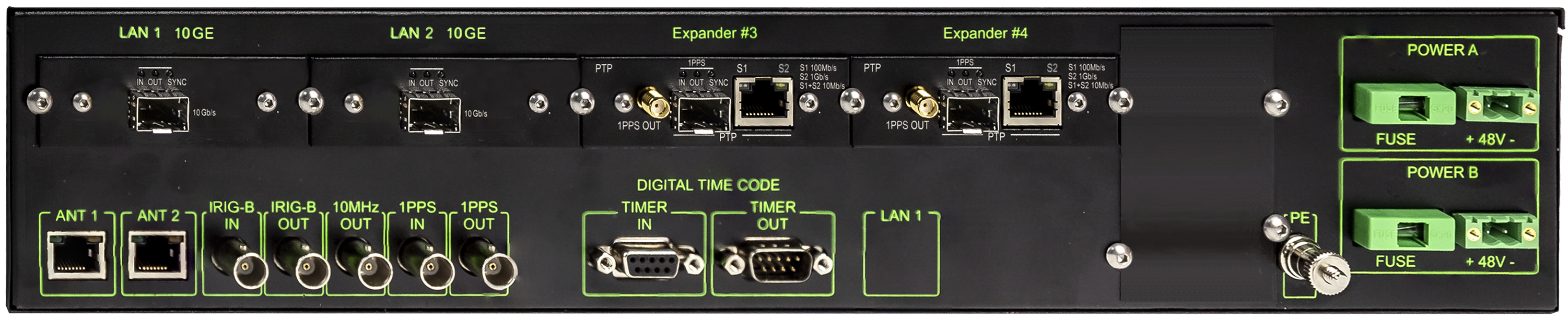

TELECOM-8 LAN: 2x10GbE + 4x1GbE
TELECOM-9 ePRTC + 1x10GbE + 4x1GbE
Expander 3-5 are preserved for IRIG-B

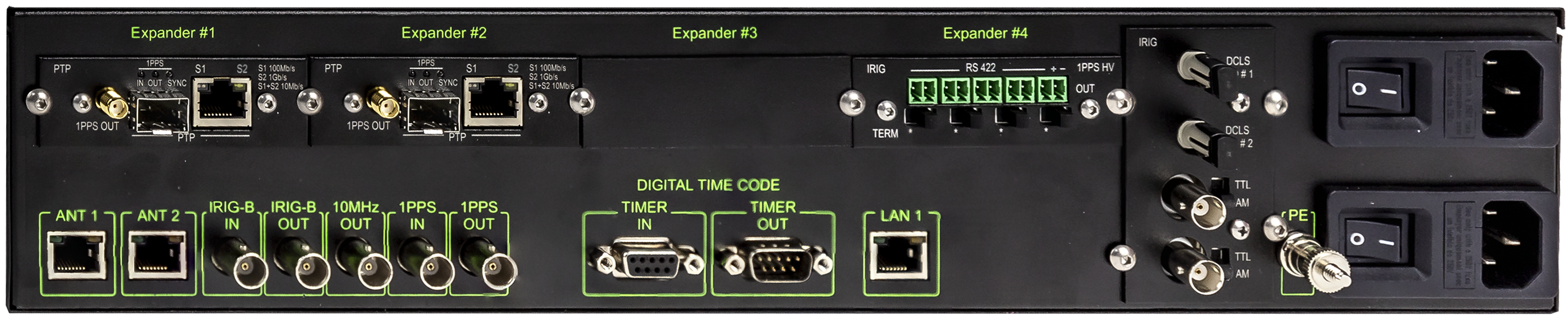

SMARTGRIDS-1 4xIRIG DCLS rs422

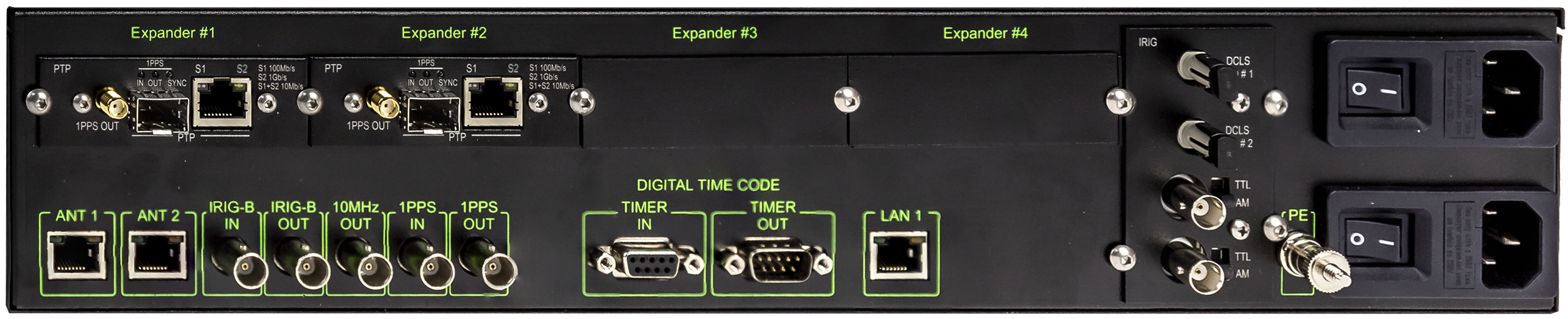

SMARTGRIDS-2 4xIRIG-DCLS: 2xFO+2xTTL
SMARTGRIDS-3 (above 1 & 2 together)
SMARTGRIDS-4 (above 3) + 4xALARMS
SMARTGRIDS-5 (above) LAN2 is 10GbE

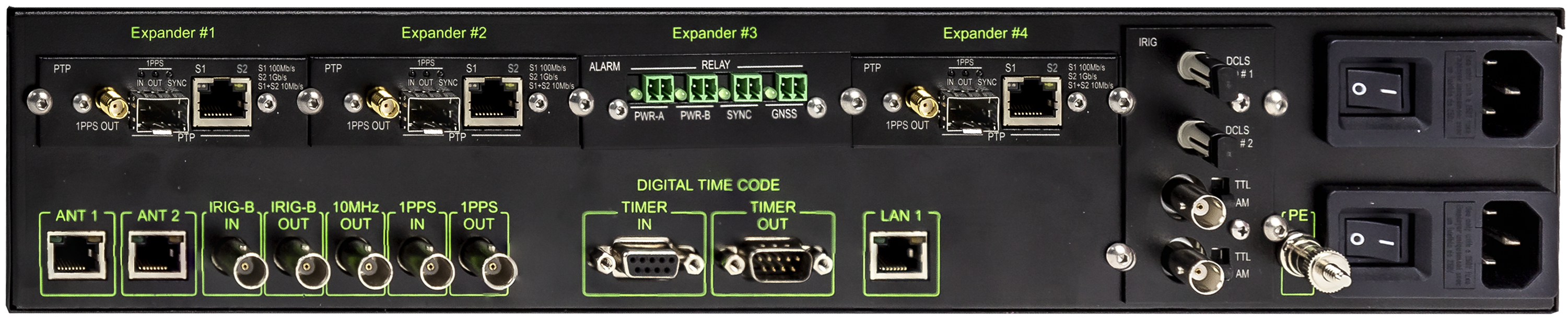

SMARTGRIDS-6 6xGE+ALARM+DCLS(FO,TTL)

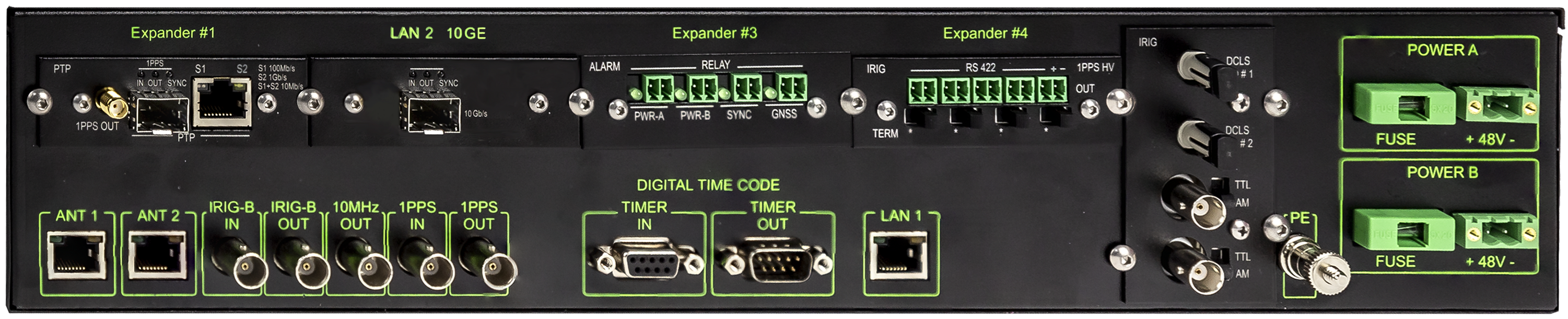

SMARTGRIDS-7 (above) + 48VDC

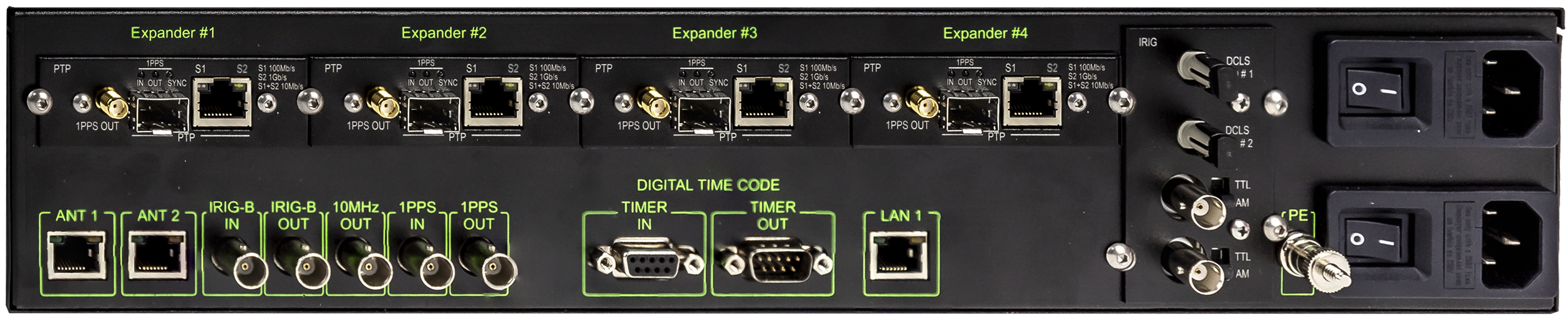

SMARTGRIDS-8 8xGE+IRIG AM/DCLS(FO,TTL)
